Piper Copper Cable Kits

Bogert Aviation

$ 573⁰⁰

I have a light weight starter

I need Concorde Battery Adapters ($89)

Aircraft Serial Number

1369Fully FAA/PMA Approved STC SA3531NM. Exceeds requirements in SB836 & SB836A. No fabricating. No Guess Work. Ready to Install.

Included

STC & AML Copy.
Sample log book entry.
Sample 337 sample entries.
Formula for figuring weight & balance, & C.G. Change
Easy to follow instructions.
Schematic listing part numbers for all cables in the kit.

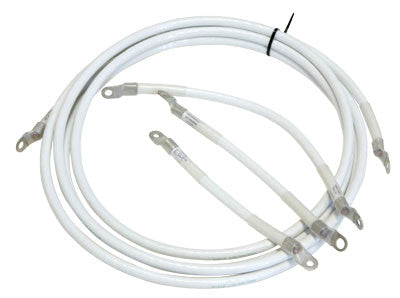

Flexible 1 gauge M22759, cut to length & assembled
Cut to the correct length.
Assembled with ‘slim-head’ style terminals.
Insulated with shrink tubing.

Does your aircraft have a light weight starter?
Light weight starters require more current than standard starters.
We may need to lengthen the starter cable.

BE SURE TO LET US KNOW YOUR PLANE HAS A LT WT STARTER!

Piper	Serial Numbers	Price	Weight
PA-12	12-1 and UP	$573	7
PA-16	16-1 and UP	$330	6
PA-18	18-1 - 18-8309025	$330	7
PA-20	20-01 - 20-1121	$330	5
PA-22	22-01 - 22-9848	$330	5
PA-23-160	23-1 - 23-2046	$1252	15
PA-23-250	27-01 - 27-504	$1273	15
PA-23-250	27-2000 - 27-2504	$1287	15
PA-23-250 12 volt	27-2505 - 27-7554168	$883	15
PA-23-250 12 volt	27-7654001 - 27-8154030	$1220	15
PA-23-250 12 volt w/APU	27-7654001 - 27-8154030	$1369	16
PA-24, PA24-180/250	SN# 24-1 - 24-2289	$838
PA-24, PA-24-180/250/260 Lower Right	24-2299 - 24-3557 & 24-3642 - 24-4299	$679	9
PA-24-180/250/260 Upper Right	24-4783, 24-4804 - and UP	$761	9
PA-24-180/250/260 (FWD)	All with Battery installed FWD of Firewall	$438	7
PA-24-400	26-5 - 26-148	$728	9
PA-24-400 w/APU	26-5 - 26-148	$795	10
PA-25B-235	25-2000 - 25-4171	$817	10
PA-25C-235/260	25-4172 - 25-7305554	$775	9
PA-25D 235/260	25-7405821 - 25-7565152	$751	9
PA-25D - 260	25-7565153 - 25-8156024	$384	2
PA-28-140	28-20001 - 28-7725290	$693	9
PA-28-140 w/APU	28-20001 - 28-7725290	$759	10
PA-28-150/160	28-1 - 28-4377	$829	10
PA-28-150/160 w/APU	28-1 - 28-4377	$893	11
PA-28-151	28-7415001 - 28-7715314	$686	9
PA-28-161	28-7716001 - 28-8216226	$724	9
PA-28-161 w/APU	28-7716001 - 28-8216226	$806	10
PA-28-161	28-8316001 - 28-8616057	$555	8
PA-28-161	28-8626058 & UP	$620	9
PA-28-180	28-671 - 28-7505259	$841	10
PA-28-180 w/APU	28-671 - 28-7505259	$891	11
PA-28R-180	28R-30002 - 28R-7130013	$884	10
PA-28-181	28-7690001 - 28-8290061	$834	10
PA-28R-200	28R-35001 - 28R-7635545	$834	10
PA-28-201T	28-7921001 - 28-7921091	$810	10
PA-28R-201	28R-7737002 - 28R-7837317	$820	10
PA-28R-201 w/ APU	28R-7737002 - 28R-7837317	$943	12
PA-28R-201T	28R-7703001 - 28R-7803373	$808	10
PA-28RT-201	28R-7918001 - 28R-8131192	$560	8
PA-28RT-201T	28R-7931001 - 28R-8131192	$815	10
PA-28-235	28-10001 - 28-7710089	$813	10
PA-28-235 w/ APU	28-10001 - 28-7710089	$902	11
PA-28-236	28-7911001 - 28-8211013	$813	10
PA-30	30-02 - 30-903	$1294	16
PA-30 w/ APU	30-02 - 30-903	$1377	16
PA-30 B, C	30-904 - 30-2000	$1238	15
PA-30 B, C w/APU	30-904 - 30-2000	$1295	15
PA-31-300	31-228 - 31-511	$1300	16
PA-31-310	31-05 - 31-8012070	$1300	16
PA-31-325	31-7400990 - 31-8012070	$1288	16
PA-31-350	31-5001 - 31-8052153	$1408	17
PA-31P	31P-03 - 31P-7730012	$1495	17
PA-31T	31T-7400001 - 31T-7920094	$2795	33
PA-32-260/300	32-1 - 32-7940290	$599	8
PA-32-301	32-8006002 - 32-8606023	$599	8
PA-32-301T	32-8024001 - 32-8424002	$1031	13
PA-32R-300	32R-7680001 - 32R-7880068	$534	8
PA-32R-301	32R-8013001 & UP	$520	8
PA-32R-301T	32R-8029001 & UP	$517	9
PA-32RT-300/300T	32R-7885002 - 32R-7987126	$517	8
PA-34-200	34-7250001 - 34-7450220	$1605	19
PA-34-200T/220T	34-7570001 - 34-8233205	$1459	18
PA-36-285	36-7360065 - 36-7660135	$629	8
PA-36-300	36-7760001 - 36-8160023	$629	8
PA-36-375	36-7802001 - 36-8302025	$889	11
PA-38-112	38-78A0001 - 38-82A0122	$322	6
PA-39 C/R	39-1 - 39-155	$1231	15
PA-39 C/R w/APU	39-1 - 39-155	$1293	16
PA-44-180	44-7995001 - 44-8195026	$1745	22
PA-44-180T	44-8107001 - 44-8207020	$1716	22
