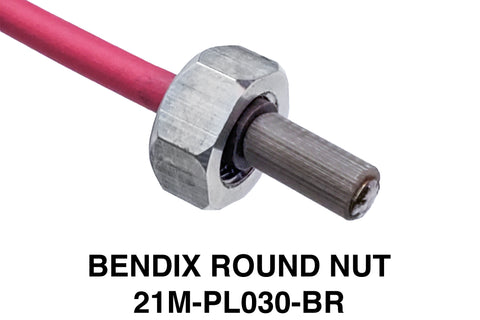

"P" Leads (Bendix Round Nut)

ALL P-LEADS PRICED EACH

P-Leads are a critical part of the ignition system. They are often overlooked but are vital to safety and airworthiness. We offer new P-Leads built by skilled technicians using superior materials. These P-Leads replace the Bendix Round Nut type terminal typically found on Bendix S-200 series magnetos. They may also be used on some S-600 and S-20 series magnetos.

Bogert Aviation fabricates P-Leads to your specifications as an "Owner-Produced Part" in accordance with FAA FAR 21.303. These P-Leads are fabricated using 14 gauge shielded cable, genuine terminal kits, and additional strain reliefs. Each P-Lead is inspected and tested. It is the responsibility of the installing agency to certify that the P-Lead is airworthy and matches the requirements of the aircraft before installation.

Technical Specs

• FAA/PMA Approved Terminal Kit 10-157209BA
• Thread pitch: 7/16 X 28
• Insulator is .25 inches OD X .56 inches long
• 14 gauge shielded wire cut to specified length
• Aircraft quality ring connectors
• Shrink tubing strain reliefs

9

Connection Example

Magneto Example
