Heavy Duty Axle Jack System

Axle Jack Pins Sold Separately.
Use the Pin Finder Table to order the correct pin(s) for your application.

---------

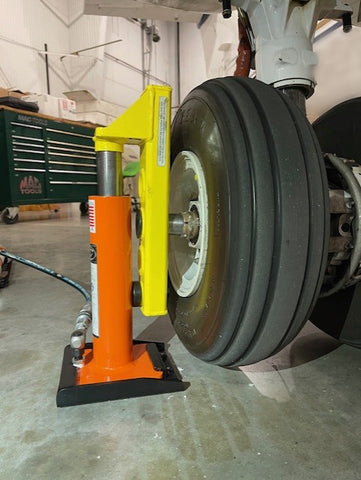

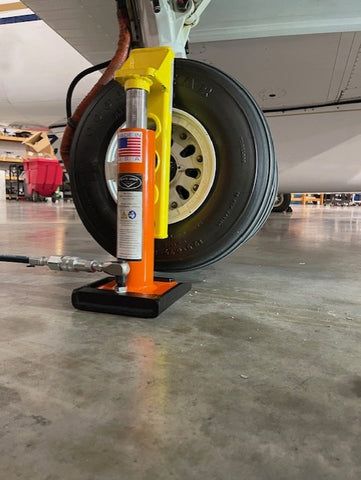

Bogert’s Heavy Duty Axle Jack System is designed to lift one wheel at the time of the aircraft listed. The HD Adapter Socket engages the remote bottle ram of the bottle jack. The axle shaft pins fit through the yellow frame and into the axle of the aircraft. The Delrin plug is inserted into the lowest position to provide a rub strip to keep the HD Adapter aligned. Jacking against the socket of the yellow frame with a bottle jack or a remote bottle jack will lift the tire off the ground.

BENEFITS:

• Safely perform maintenance ANYWHERE to add mission capability.
• System is portable, lightweight and compact.
• Frees up personnel, hanger space and wing-jacks for other work.
• Saves money by adding only the necessary pins for your business.
• Respond quickly when it is impractical or impossible to tow the aircraft to the hangar.

FEATURES:

• Secure engagement of the lifting pin to the axle for safe lifting of one wheel at a time.
• Powered by the highly reliable P-40A aluminum pump used by the military all
  over the world.
• Heavy duty hydraulic jack built for long service life.
• Machined steel pin specifically designed to fit the aircraft.
• Small, portable, and lightweight compared to wing jacks
• Self-contained for remote work when necessary
• Made in the USA

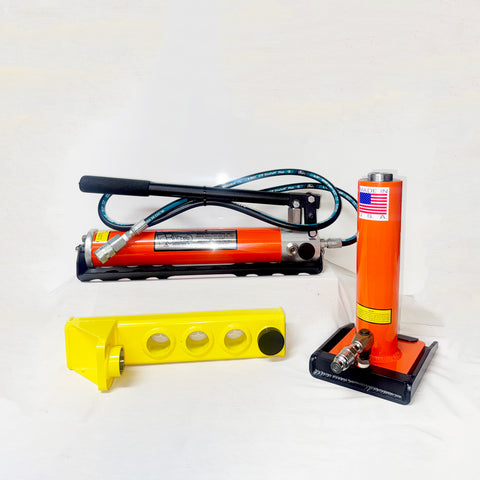

SYSTEM INCLUDES:

•          BMI Hydraulic Technologies 15-Ton 12” remote hydraulic jack (Made in USA)
•          BMI Hydraulic Technologies P40A hydraulic pump (Made in USA)
•          Bogert’s Axle Pin Adapter and Rub Plug. (Made in USA)
•          6-foot hose with couplers is included. (Assembled in USA)

30M-HDAJ CONTENTS:

	P/N	Description
	88M-SJRB-1512	15 Ton, 12” Remote Bottle Jack
	90M-PA-40A	Hydraulic Pump
No photo	30M-HV6	6-Foot Hose with Couplings
	30M-HD01	HD Adapter
	30M-HD01-07	HD Rub Strip Plug
No photo	30M-HDOM	Operational Manual
No photo	30M-HDMM	Maintenance Manual

	P/N	Tonnage/Working Pressure @ 6500psi	Closed Height	Extended Height	Hydraulic Lift Stroke	Jack Base Size	Weight (lbs)
	88M-SJRB-1512	12 Ton	12”	22”	10”	4” x 6”	17

	P/N	Stage	Piston Diameter	Volume Per Stroke	MAX PSI	BAR	Handle/Lever Effort (lbs.) @ 10,000 PSI	Usable Oil Cap	Weight with Oil (lbs.)
	90M-PA-40A	Single	7/16	0.1882 cu in	6,000	409	105	40 cu in	9.4

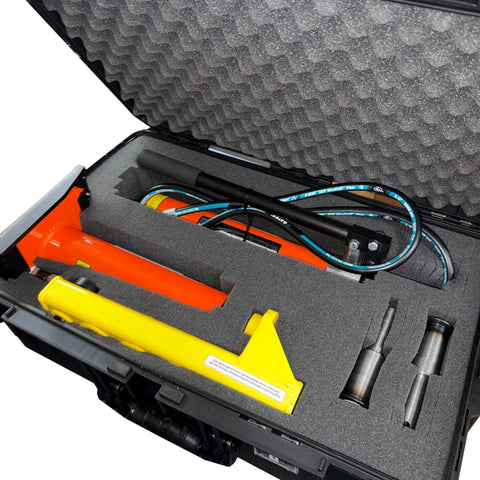

OPTIONAL CARRY CASE:

Pins are sold separately to match your aircraft.

Use the Pin Finder table to order the correct pin(s) for your application. Build as you go for new aircraft on your ramp. If your aircraft is not listed, please call us to discuss it. Models are being added.
